Aluminum 3003 H22

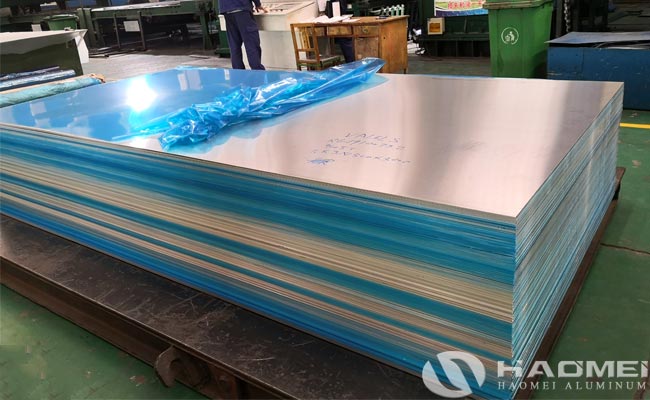

Aluminum 3003 h22 alloy is a typical Al-Mn alloy with good formability, excellent corrosion resistance and weldability. 3003 H22 aluminum sheet belongs to the quarter-hard 3003 aluminum sheet, which is softer than ordinary aluminum sheet but slightly harder than fully soft aluminum sheet. It is suitable for shallow drawing products and products that require a certain level of strength. Haomei Aluminum provides 3003 H22 aluminum sheet, 3003 H22 aluminum coil, and 3003 H22 aluminum diamond plate products, which can be customized in various hardness levels, with a tensile strength of around 140-150MPa. Various products such as 3003 mirror aluminum sheet, 3003 color coated aluminum sheet, 3003 aluminum jacketing and 3003 aluminum circle are available.

Aluminum 3003 h22 properties are:

Tensile strength (25°C MPa): 150

Yield strength (25°C MPa): 145

Hardness (500kg force 10mm): 40

Elongation at break 1.6mm (1/16in): 8-16

Maximum shear stress of thickness: 95 MPa

Application range: power battery shell material, battery cover plate, heat exchanger, pressure vessel, automobile radiator oil tank, automobile water cooling plate, capacitor housing, pipeline insulation, etc.

Advantages of 3003 aluminum sheet produced by Haomei Aluminum:

A: Medium strength, wide range of applications.

B: Strong plasticity, easy to form, excellent processing performance.

C: Controls the impurity element Cu within the range of 0.1% to ensure the corrosion resistance of the alloy.

D: The surface of the 3003 aluminum sheet has good quality, with no oil spots, waves, scratches, roller marks, neat cutting edges, and no burrs.

Haomei Aluminum is a supplier of aluminum 3003 h22 sheet and coil, providing national standard materials such as 3003 aluminum sheet, 3003 aluminum coil, 3003 aluminum strip, etc. Various thickness options are available in stock, and customizations for non-standard hardness and dimensions of aluminum sheet and aluminum coil are also available.
