Embossed Colour Coated Aluminium Sheet

Embossed Colour Coated Aluminium Sheet

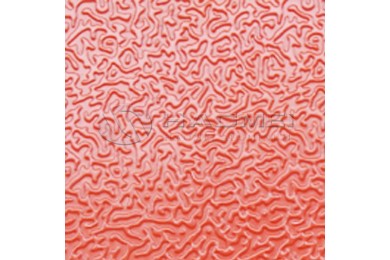

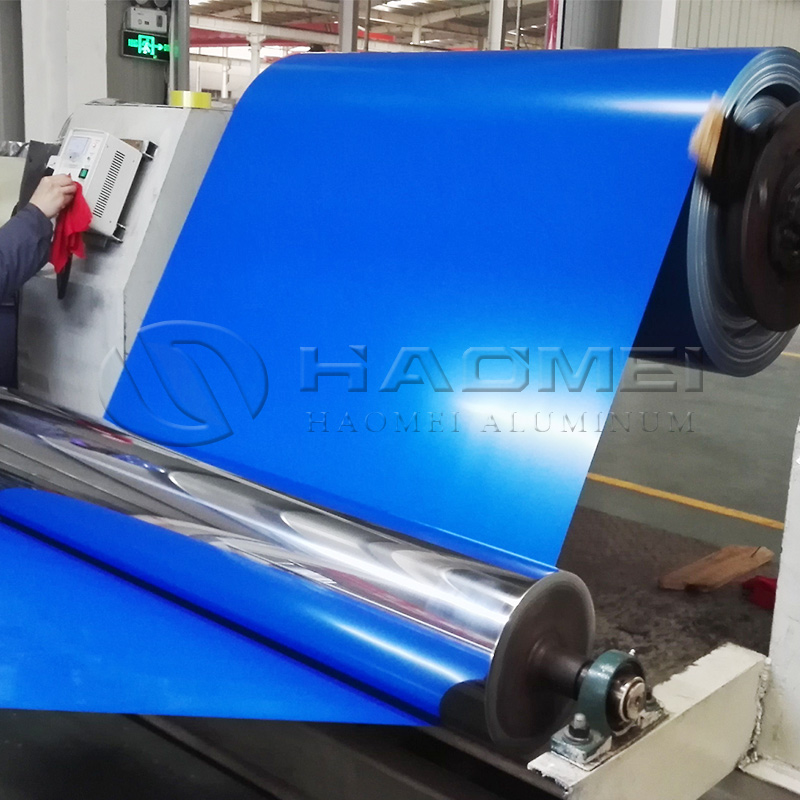

Embossed Colour Coated Aluminium sheet, also noted as oven baked embossed aluminium sheet, embossed aluminium sheet, or aluminium roofing sheet, is produced by roller coating system, a continuous process where the aluminium substrate is degreased, chemically pre-treated and oven baked. Further through embossing process, the surface has a beautiful embossment design: either diamond embossed (rhombic) or stucco embossed (orange peel).

Oven baked embossed aluminum sheet improves the thickness of the alloy by about 0.10mm, strengthens its tension and steel features, and improves the visual enjoyment and aesthetic value.

Specification of Embossed Colour Coated Aluminium sheet:

1) Aluminium substrates alloy: AA1100, AA3003, AA8011, etc

2) Temper: H14/H16/H18

3) Aluminium sheet thickness (gauge): 0.45mm,0.55mm (0.20mm~0.70mm)

4) Width: 900mm~1270mm. 1000mm and 1200mm is favoured.

5) Coating: polyester (PE) (default) or PVDF (upon request)

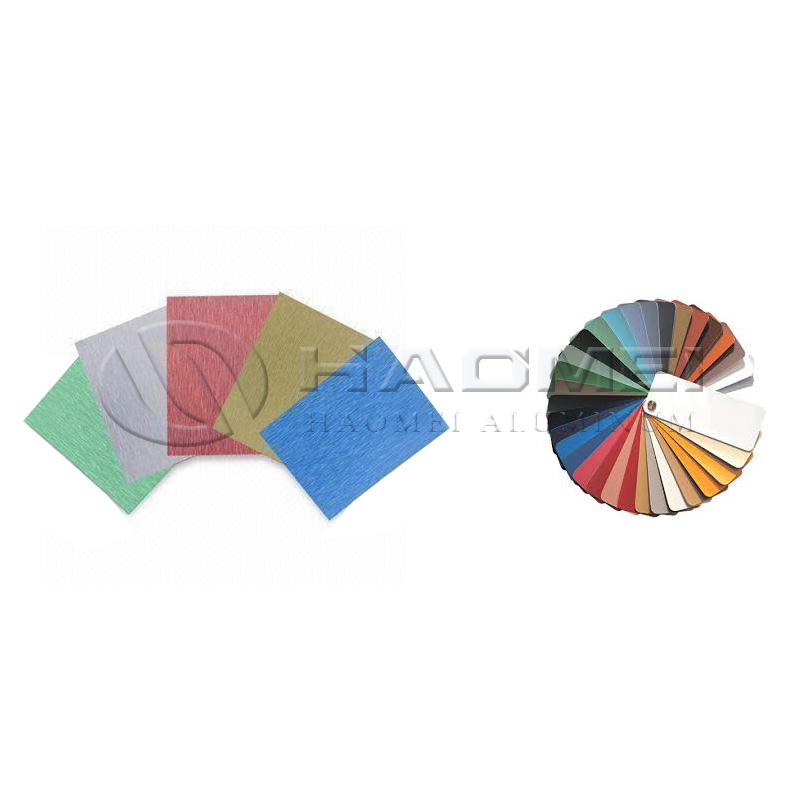

6) Popular colours: grey beige, bush green, terracotta red, nut brown, etc

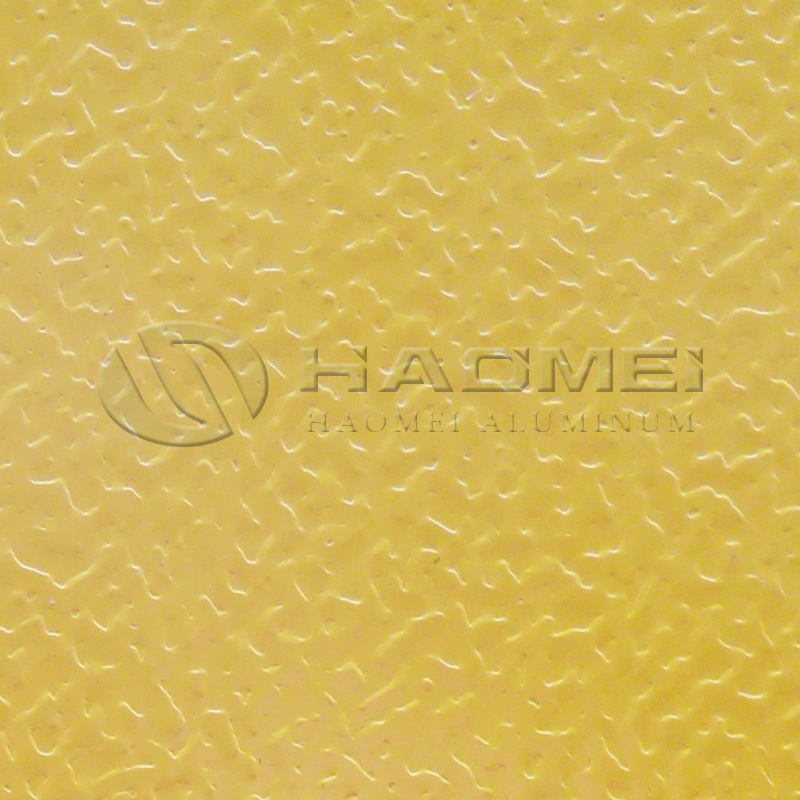

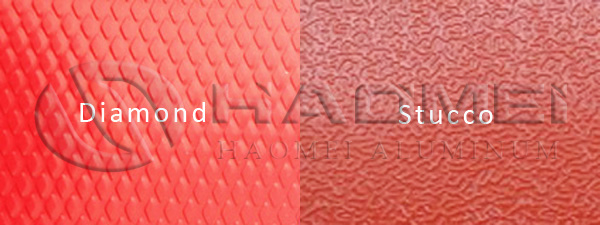

7) Embossing patterns: diamond (rhombic) or stucco (orange peel) Please review photo below:

Application of Embossed Aluminium sheet

•Ideal material for aluminium roofing sheet, long span roof sheet, and step tile

•It is especially popular for West Africa, Southeast Asia and Europe
