Product Description
Specification of 3004 aluminum strip
Alloy:AA3004.
Temper:HO,H12,H14,H16,H18,H22,H24,H26,H28.
Thickness:0.2-0.4 mm.
Width:16-80mm.
Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008.
Weight:about 0.5-2.5mts per pallet.
Surface:Mill finishing,mirror finishing,checkered.
Package:Export standard package with wooden pallet.
Certificate: Mill Test Certificate,Certificate of origin:Form A,Form E,CO.
Application - 3004 Aluminium Coil Strip
1.3004 aluminium coil mainly Used for processing the component parts that need to have good formability, high solderability good resistance to corrosion , such as kitchen utensils and appliances, food and chemical products processing and storage devices, transport tank,tank of liquid products.
2.3004 aluminum coil mainly used in chemical production and storage equipment, plate processing,building materials, construction, cable pipes, sewer pipes, various parts of lamps and lanterns, cans,wave plate, building materials, color aluminum plate, electric light head.
3. 3004 aluminium sheet mainly used in processing pressure vessel,pipeline,utensil,cooling fin,radiator,makeup board,copy machine roller,ship material.

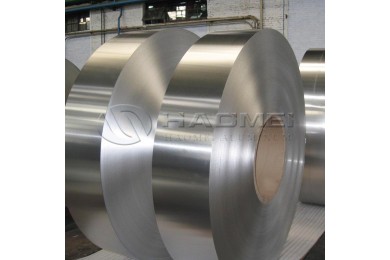

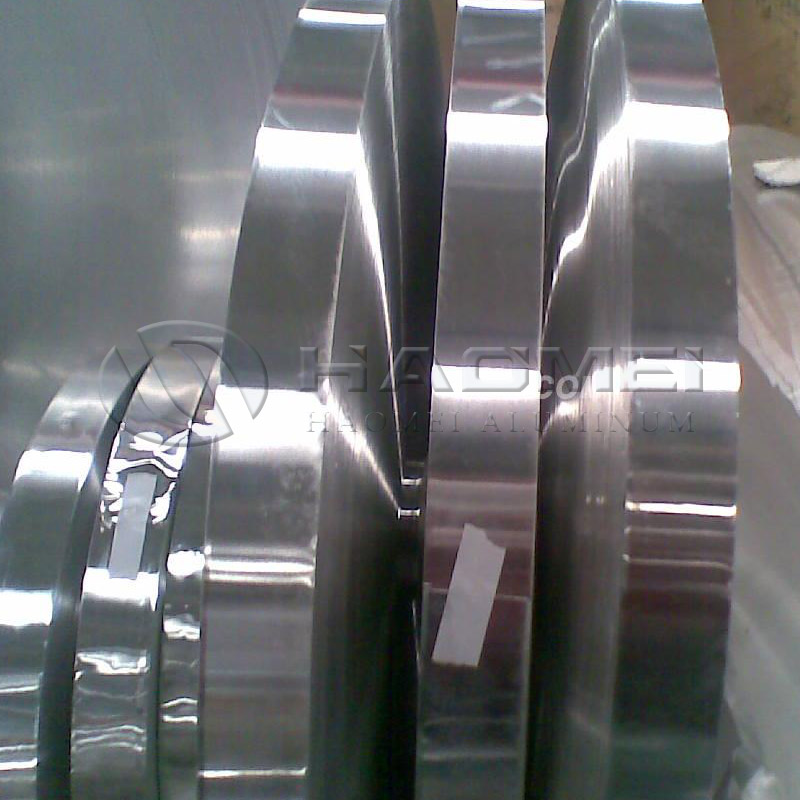

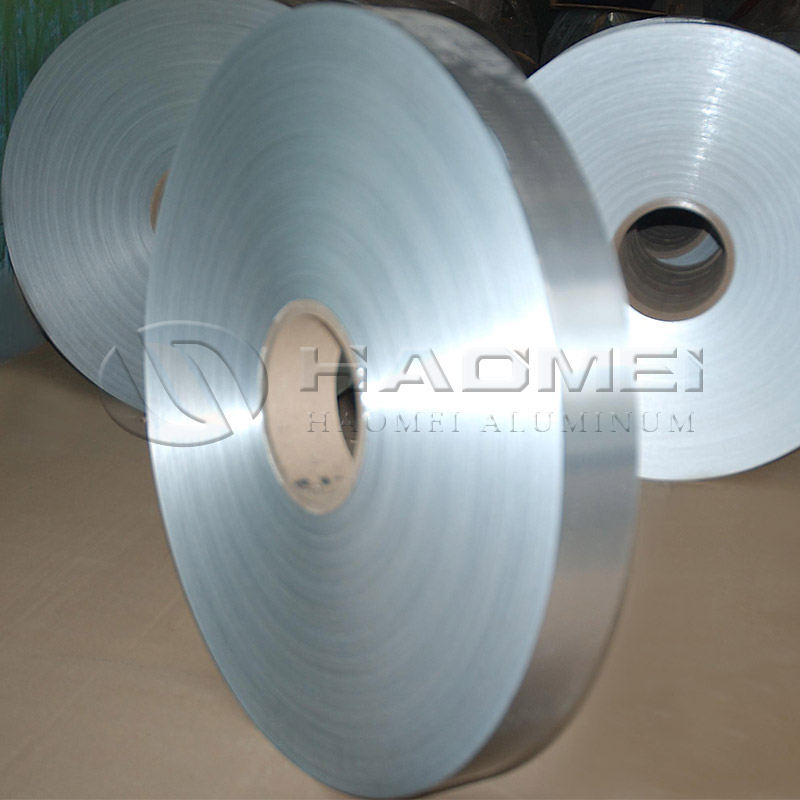

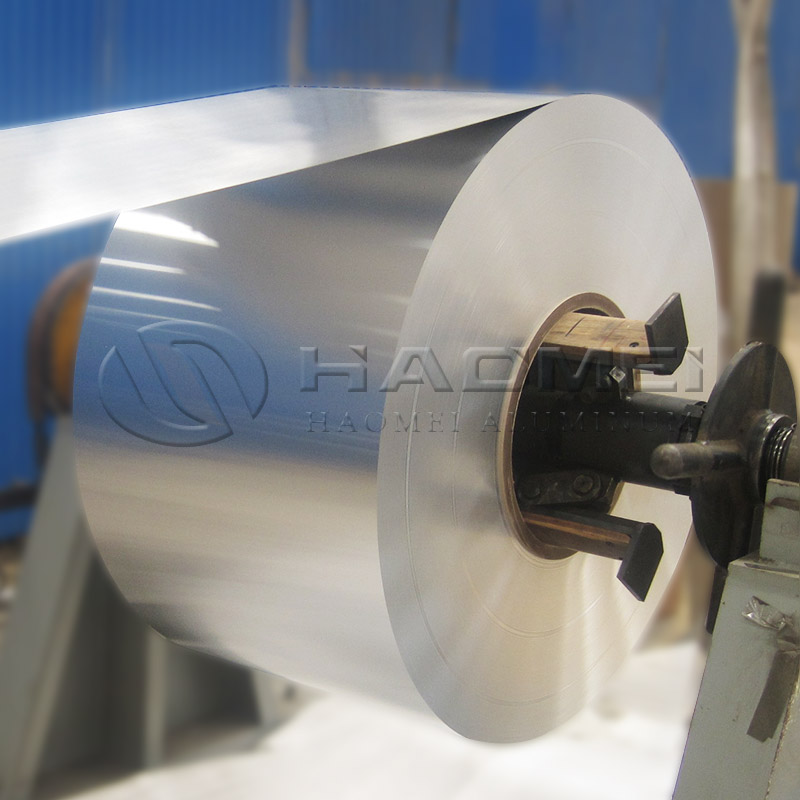

Overall Sight of 3004 Aluminium Coil Strip
|
Product |
Alloy |
Temper |
Thickness |
Width |
I.D. |
||||||||
|
O |
0.25-0.4mm |
85-400mm |
75/150mm |
||||||||||
|
Chemical Compositions |
|||||||||||||
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Ni |
Zn |
Ti |
Al |
||||
|
0.3 |
0.7 |
0.25 |
1.0-1.5 |
0.8-1.3 |
0.05 |
0.25 |
-0.05 |
Remains |
|||||
|
Mechanical property |
|||||||||||||
|
Alloy |
Temper |
Thickness |
U.T.S(Mpa) |
Elongation(%) |
|||||||||
|
O |
0.25-0.4mm |
155-200 |
13 more |
||||||||||
|
1. MOQ |
5mt |
|
|||||||||||
|
2. Payment Term |
30% T/T in advance and 70% balance at sight B/L copy or irrevocable L/C at sight |
|
|||||||||||
|
3. Loading |
(1) Normally, for sheet, 18-20MT can be loaded into 20 foot container,we try to use 20 foot container,the sea freight rate is much cheaper than 40 foot container. (2) the packing is very strong, which has 3 lays, thick fiber, foam, plastic,enough drying agent, suitable for long distance sea transportation. |
|
|||||||||||
|
4. Delivery time |
20~35days from L/C or advanced payment. |
|
|||||||||||
